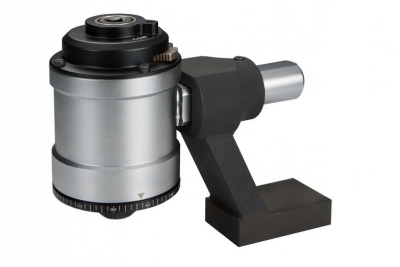

产品:扭力倍增器Torque
Multiplier |
 |
TW-428-02 4500Nm |

Features
放大范围4500N.m
扭矩放大倍率26:1,准确性保证优于±5%。
高齿轮比,只需使用小扭矩扳手操作即可。
坚固的结构,容易保养,使用寿命长。
附保护装置盒及替换驱动方头。
反回弹安全装置(AWUR),操作时更安全,更方便。
角度显示器易于观察上锁扭矩及角度。
|

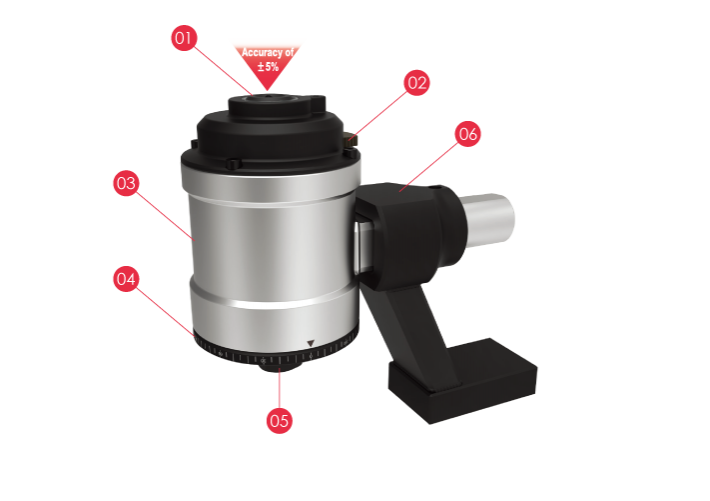

Details:
-
01 Input end:
-
Chromium-molybdenum
alloy steel brings better strength
and life cycle.
-

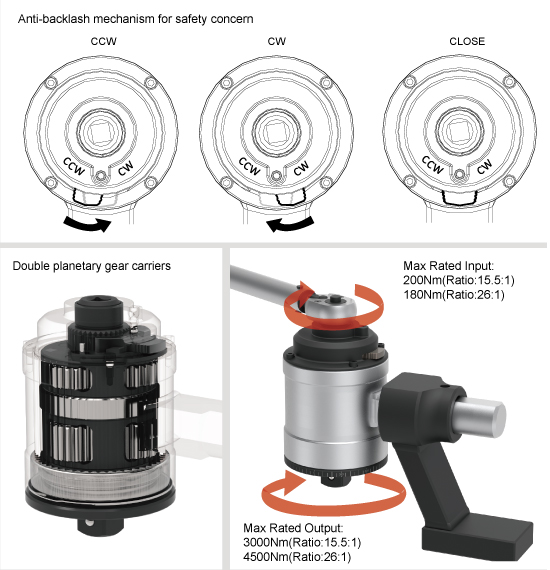

02 Safety device:
-
Anti-backlash
mechanism for safety concern and
comfortable operation
-
03 Main body:
-
Electroplating
Finished; good for anti-corrosion
and anti-abrasion.
-
Planetary gear
mechanism, double
planetary-gear-carriers brings high
load capacity with high ratio 26:1.
-
04 Angle protractor:
-
For easy torque
setting and angle tightening
-
05 Output end:
-
chromium-molybdenum
alloy steel brings better strength
and life cycle.
-
06 Reaction arm:
-
Two alternative
reaction bars can be applied to
different working environment.
Application & Others:

Specifications
TT NO. |
Nm |
ft-lb |
Ratio |
Input Square |
Output Square |
g |
case/CTN |
TW-428-01 |
3000 |
2200 |
15.5:1 |
1/2" |
1" |
11500 |
1 |
TW-428-02 |
4500 |
3300 |
26:1 |
1/2" |
1" |
13000 |
1 |
|
|
