产品特点：
‧Industrial
application with durability.
‧Tolerance of torque +/- 4%.
‧Four torque sizes for easy scale reading.
‧Push through mechanism for easy repair.
‧Loud click sound when required torque is reached.
‧Length independent mechanism for accurate torque.
‧Quality meets DIN ISO 6789 & ASME B107.14M-2004
规格参数：
|

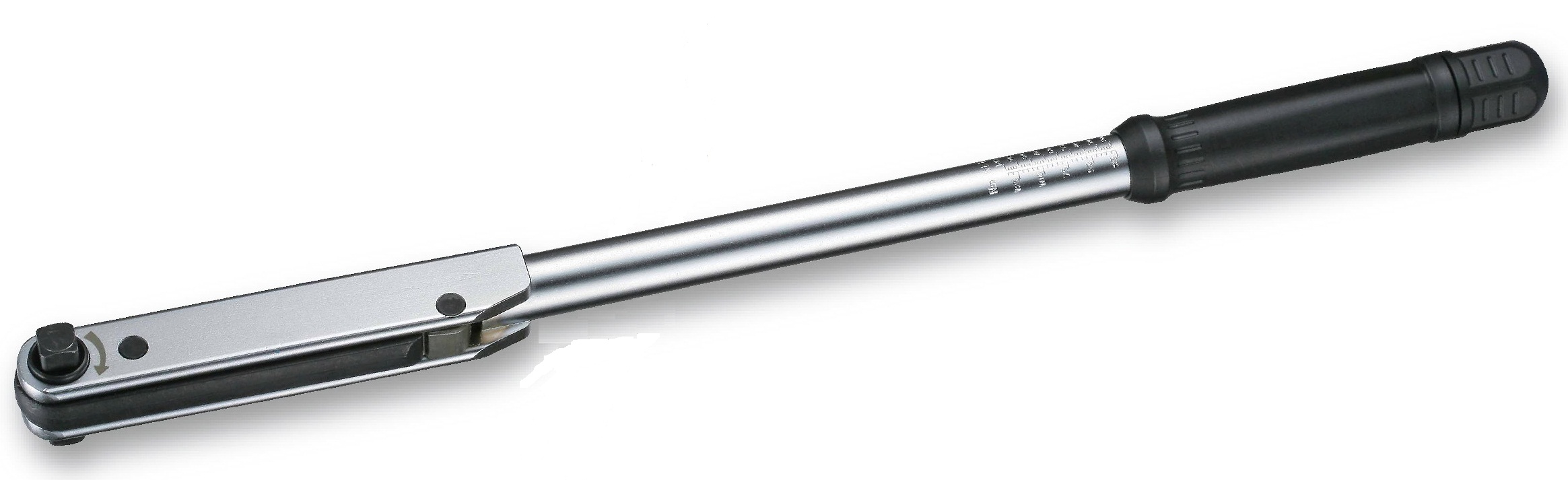

四刻度声响可调扭力扳手 Classic Adjustable Torque Wrench |
|
TT NO. |
Square drive |
Nm |
Kgf.m |
Ibf.in |
Ibf.ft |
g |
L(mm) |
|
TW-224-1S |
1/4" |
2.5-11 |
0.3~1.2 |
20~100 |
2~8 |
880 |
320 |
|
TW-324-1S |
3/8" |
2.5~11 |
0.3~1.2 |
20~100 |
2~8 |
800 |
320 |
|
TW-324-2S |
3/8" |
5~33 |
0.5~3.4 |
40~300 |
4~24 |
1040 |
425 |
|
TW-324-3S |
3/8" |
12~68 |
1.2~7 |
100~600 |
10~50 |
1600 |
475 |
|
TW-424-1S |
1/2" |
12~68 |
1.2~7 |
100~600 |
10~50 |
1600 |
475 |
|
TW-424-2S |
1/2" |
25~135 |
3~14 |
200~1200 |
20~100 |
1930 |
550 |
|
TW-424-3S |
1/2" |
50~225 |
5~23 |
400~2000 |
40~160 |
1948 |
600 |
|
TW-424-4S |
1/2" |
70~330 |
7~35 |
600~3000 |
50~250 |
3410 |
795 |
|
TW-624-1S |
3/4" |
140~560 |
14~57 |
1200~5000 |
100~410 |
6580 |
1130 |
|
TW-624-2S |
3/4" |
200~810 |
22~82 |
1800~7200 |
150~600 |
7000 |
1180 |
|
