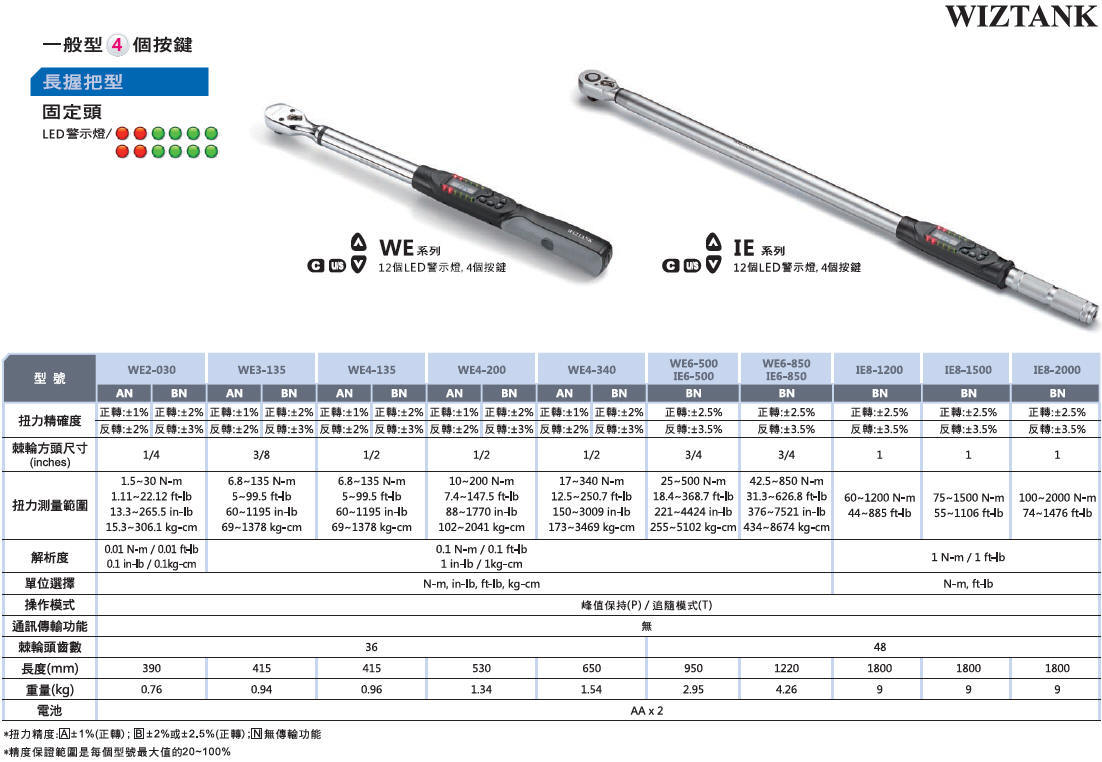

Model No. |
Square
Drive
(inches) |
Length
(mm) |
Accuracy |
Max
Operation
Range |
Measured Torque
Range |
Resolution |
PC
Connectivity |
|
WE2-030 |
AN |
1/4 |
390 |
CW: +/-1%
CCW:+/-2% |
30 N-m
22.12 ft-lb
265.5 in-lb
306.1kg-cm |
1.5~30 N-m
1.11~22.12 ft-lb
13.3~265.5 in-lb
15.3~306.1kg-cm |
0.01 N-m
0.01 ft-lb
0.1 in-lb
0.1 kg-cm |
No |
|
BN |
CW: +/-2%
CCW:+/-3% |
|
WE3-135 |
AN |
3/8 |
415 |
CW: +/-1%
CCW:+/-2% |
135 N-m
99.5 ft-lb
1195 in-lb
1378 kg-cm |
6.8~135 N-m
5~99.5 ft-lb
60~1195 in-lb
69~1378 kg-cm |
0.1 N-m
0.1 ft-lb
1 in-lb
1 kg-cm |
No |
|
BN |
CW: +/-2%
CCW:+/-3% |
|
WE4-135 |
AN |
1/2 |
415 |
CW: +/-1%
CCW:+/-2% |
135 N-m
99.5 ft-lb
1195 in-lb
1378 kg-cm |
6.8~135 N-m
5~99.5 ft-lb
60~1195 in-lb
69~1378 kg-cm |
0.1 N-m
0.1 ft-lb
1 in-lb
1 kg-cm |
No |
|
BN |
CW: +/-2%
CCW:+/-3% |
|
WE4-200 |
AN |
1/2 |
530 |
CW: +/-1%
CCW:+/-2% |
200 N-m
147.5ft-lb
1770 in-lb
2041 kg-cm |
10~200 N-m
7.4~147.5 ft-lb
88~1770 in-lb
102~2041 kg-cm |
0.1 N-m
0.1 ft-lb
1 in-lb
1 kg-cm |
No |
|
BN |
CW: +/-2%
CCW:+/-3% |
|
WE4-340 |
AN |
1/2 |
650 |
CW: +/-1%
CCW:+/-2% |
340 N-m
250.7 ft-lb
3009 in-lb
3469 kg-cm |
17~340 N-m
12.5~250.7 ft-lb
150~3009 in-lb
173~3469 kg-cm |
0.1 N-m
0.1 ft-lb
1 in-lb
1 kg-cm |
No |
|
BN |
CW: +/-2%
CCW:+/-3% |
|
WE6-500 |
BN |
3/4 |
950 |
CW: +/-2%
CCW:+/-3% |
500 N-m
368.7 ft-lb
4424 in-lb
5102 kg-cm |
17~340 N-m
12.5~250.7 ft-lb
150~3009 in-lb
173~3469 kg-cm |
0.1 N-m
0.1 ft-lb
1 in-lb
1 kg-cm |
No |
|
WE6-850 |
BN |
3/4 |
1220 |
CW: +/-2%
CCW:+/-3% |
850 N-m
626.8 ft-lb
7521 in-lb
8674 kg-cm |
42.5~850 N-m
31.3~626.8 ft-lb
376~7521 in-lb
434~8674 kg-cm |
0.1 N-m
0.1 ft-lb
1 in-lb
1 kg-cm |
No |
