产品：3/8
10MM系列公制6角标准套筒 |
|
 |
产品名称:
公制6角标准套筒
产品型号:3/8
10MM系列
产品品牌:
泛亚精工
产品相关文档下载:
无
产 地：台湾 |
 |
|
产品特点
• 优质铬钒钢锻造
• 薄壁设计
美国品牌，全球名牌
|

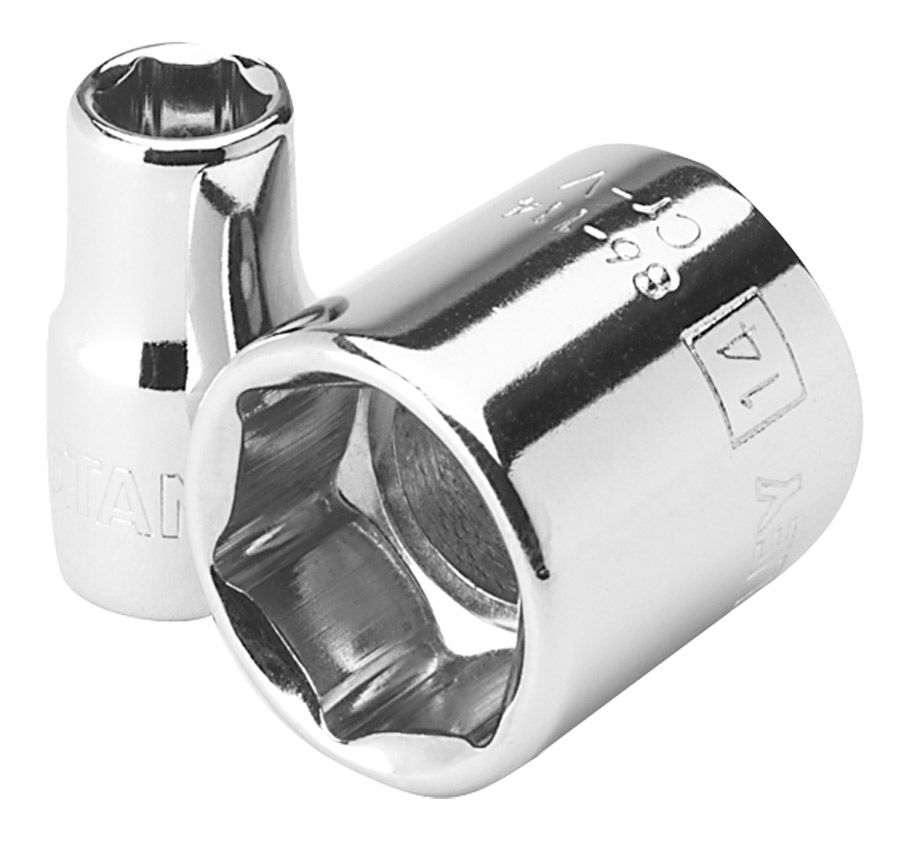

3/8 10mm公制六角套筒 |
|
产品参数 |
|
Stanley 件号 |
Emmet 件号 |
规格 |
长度 |
|
86-301-1-22 |
21506 |
6MM |
25.7MM |
|
86-302-1-22 |
21507 |
7MM |
25.7MM |
|
86-303-1-22 |
21508 |
8MM |
25.7MM |
|
86-304-1-22 |
21509 |
9MM |
25.7MM |
|
86-305-1-22 |
21510 |
10MM |
25.7MM |
|
86-306-1-22 |
21511 |
11MM |
25.7MM |
|
86-307-1-22 |
21512 |
12MM |
25.7MM |
|
86-308-1-22 |
21513 |
13MM |
25.7MM |
|
86-309-1-22 |
21514 |
14MM |
25.7MM |
|
86-310-1-22 |
21515 |
15MM |
25.7MM |
|
86-311-1-22 |
21516 |
16MM |
29MM |
|
86-312-1-22 |
21517 |
17MM |
29MM |
|
88-131-1-22 |
21518 |
18MM |
29MM |
|
88-132-1-22 |
21519 |
19MM |
29MM |
|
88-133-1-22 |
21520 |
20MM |
29MM |
|
88-134-1-22 |
21521 |
21MM |
29MM |
|
88-135-1-22 |
21522 |
22MM |
29MM |
|
88-136-1-22 |
|
23MM |
29MM |
|
88-137-1-22 |
21524 |
24MM |
29MM |

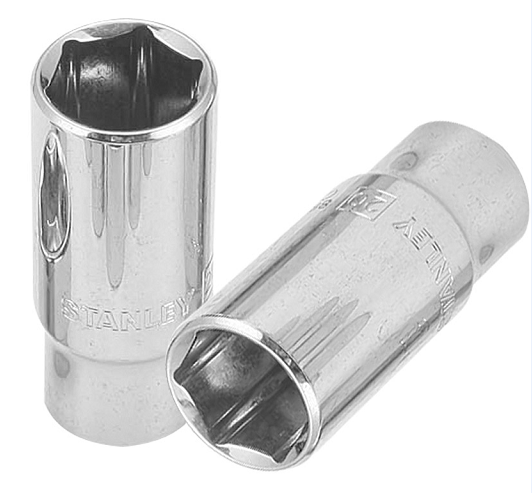

3/8 10MM系列公制6角长套筒
产品参数
|
件号 |
规格 |
长度 |
|
86-320-1-22 |
8MM |
45.5MM |
|
86-321-1-22 |
9MM |
45.5MM |
|
86-322-1-22 |
10MM |
45.5MM |
|
86-323-1-22 |
11MM |
45.5MM |
|
86-324-1-22 |
12MM |
45.5MM |
|
86-325-1-22 |
13MM |
45.5MM |
|
86-326-1-22 |
14MM |
50MM |
|
86-327-1-22 |
15MM |
53MM |
|
88-825-1-22 |
16MM |
53MM |
|
86-328-1-22 |
17MM |
53MM |
|
88-826-1-22 |
18MM |
56MM |
|
86-329-1-22 |
19MM |
56MM |
|
88-827-1-22 |
20MM |
63.5MM |
|
88-828-1-22 |
21MM |
63.5MM |
|
88-829-1-22 |
22MM |
63.5MM |
